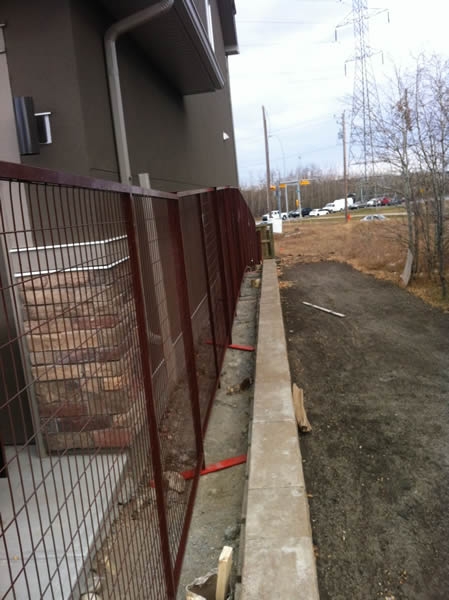

The concept for our Tex Fence was based upon a buffalo fence originally used in Texas. A professional legal opinion was that the buffalo fence was designed to keep buffalo “in”, whereas, the Tex Fence will keep cattle or wildlife “out”. Therefore, should you want to enclose facilities the Tex Fence would work, but if you want to fence in the buffalo the outward angle would work.
Post Protectors designed to protect gas wells, telephone/hydro poles, etc.
The basic design of our Tex Fence is constructed with light weight:
- 1 1/4” x 1 1/4” x 1/16” tubing
- 2” x 3/16” flatbar
- 2” x 2” x 1/8” angle iron
Each piece of fence goes from ground level up 20 ¼” and slopes up at a 45 degree to 3’ at the top.
Each piece of fence has flat bar with two holes on each end so fence can be bolted together and made to any size you wish for perimeter.
Our Tex Fence is built so any panels with or without gates can be added to original size(s) purchased.
All fencing is shipped raw (rust over time), primed or painted (maintenance free)
Main colors are: “Safety Blue, Green, Orange & Red, as well Brown or Yellow”
Virtually all sizes available for special requirements.
We will work off your measurements and quote on all sizes required.
Order Direct or Order through Oil Retail Outlets
We Do Not Accept Returns on Orders – All sales are final.
We Deliver (B.C. & Ont. exempted).
Panels/Sections
Straight piece of fence – most common sizes 6’, 8’ & 10’
2’, 3’ 4’ & 5’ – Special Requirements – Intensive Labour – priced accordingly.
Panels/Sections with Gates
Same common sizes as above with a gate opening in the middle with a 30” opening for opening & closing.
**A gate requires a 5’ panel/section – No Smaller**
All panels supplied with 2 bolts, 2 nuts & 4 washers.
Corners
Sizes: 2’, 3’, & 5’
2’ corner is 3’ at bottom and 2’ at top
3’ corner is 4’ at bottom and 3’ at top **Special Requirement**
5’ corner is 6’ long at the bottom and 5’ at top on both sides at a 90 degree angle joined with pieces of angle iron.
**A gates requires a 5’ corner – No Smaller**
We can build corners reversed as well.
All corners supplied with 1 piece of rebar, 2 bolts, 2 nuts & 4 washers.
Post Protectors
- One piece solid unit.
Bottom dimensions: 44 ½” x 44 ½” outside.
Top dimensions: 20 ½” x 20 ½”outside.
- Two Piece – Bolts Together
Larger than solid unit by 4” on dimensions.
Consists of four corner pieces.
Bottom rail is 2’ long & top rail is 1’ long.
Four corners bolt together.
Sign Holders
Installed in panels: ¾” x ¾” x 1/8” angle iron and 2” x 3/16” flat bar
Main frame is angle iron: 12” x 24” rectangle with 2 – 12” flat bar as backing.
Round Tex Fence
Each piece of fence is built individually.
Four pieces are bolted together to make one complete fence.
Diameter at the bottom: 12’ 8’’ & Diameter at the top: 10’ 7”
A gate can be placed in one of the four pieces of fence.
Safety orange in color.
